FS-20
Industrial Bulk Water Access Panel
The FS-20 adds automated access and payment to equipment you already own. With a more robust, industrial enclosure than its FS-10 counterpart, it suits high volume facilities looking to upgrade from manual tracking or retrofit existing fill point systems.

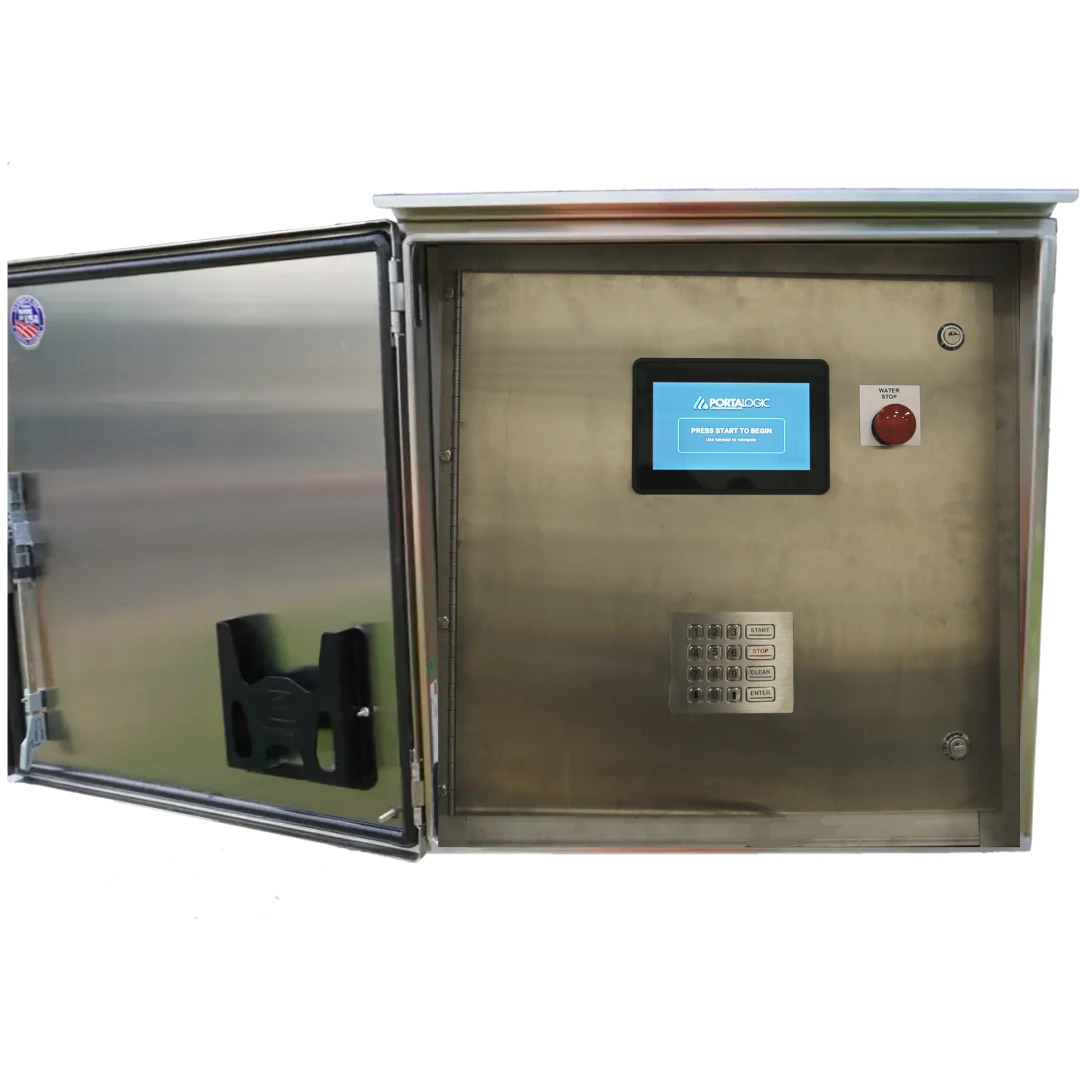

A higher-traffic fill station demands more than a basic keypad. The FS-20 is an industrial access panel that retrofits automated access, metering, and billing onto your existing equipment. Its NEMA 4X stainless enclosure and latchable swing-out door stand up to weather and heavy use, and it supports multiple access and payment methods for sites serving many account types.
Standard Features
- Keypad or touch-screen access display
- Secure PIN access control
- Water metering on every transaction
- NEMA 4X, 304 stainless steel enclosure
- Latchable swing-out door for weather protection
- Integrates with existing dispensing equipment
- Integrated management and payment portal
- Configurable pricing by user type or volume
- Can be wall mounted, strut/pole mounted, or via wall penetration
Optional Features
- Point of sale payment methods: Credit card reader, bill acceptor, coin acceptor
- Additional access methods: RFID card, key fobs, and others
- Additional enclosure styles
- Additional selector switches for multiple fill points
- Heavy duty kiosk-style printer, illuminated chute
- Cloud hosted software package
- Custom logic and programming
- Stainless Steel sun shroud for added protection
FS-20 Model use cases
Common Applications:
- Upgrading a timer-based manual bulk water station
- Facilities with an existing building looking for the most cost effective way to automate water access and sales
- Municipalities looking for a replacement of an existing access panel due to manufacturers no longer supporting older models
- Creating a revenue stream from bulk water sales
- Adding a weather-rated panel where the FS-10 kiosk is not rugged enough
.webp)
FS-20 Specifications
Specifications:
Type:
Retrofit access panel / kiosk
Dimensions:
24" x 24" x 24"
Enclosure:
NEMA 4X, 304 stainless steel
Hauler Access:
Multiple access methods including keypad entry, swipe cards, key fobs, credit/debit card, and others as required.
Power:
120 VAC, 5 AMP
Interface:
Control and monitor valves and meters, gates, sensors, and more
Temperature:
Operating temperature range -40°F to 122°F (-40°C to 50°C)
Software:
Station interfaces with Portalogic management software for record keeping, billing, monitoring, and reporting
Certifications:
UL and CSA Listed, AIS and BABA Compliant
Need more information?
Contact our team today.
Ask us questions, no matter what project stage. From early budgetary planning to full station design recommendations, Contact our team today so that we can assist you in your journey.
