FS-22

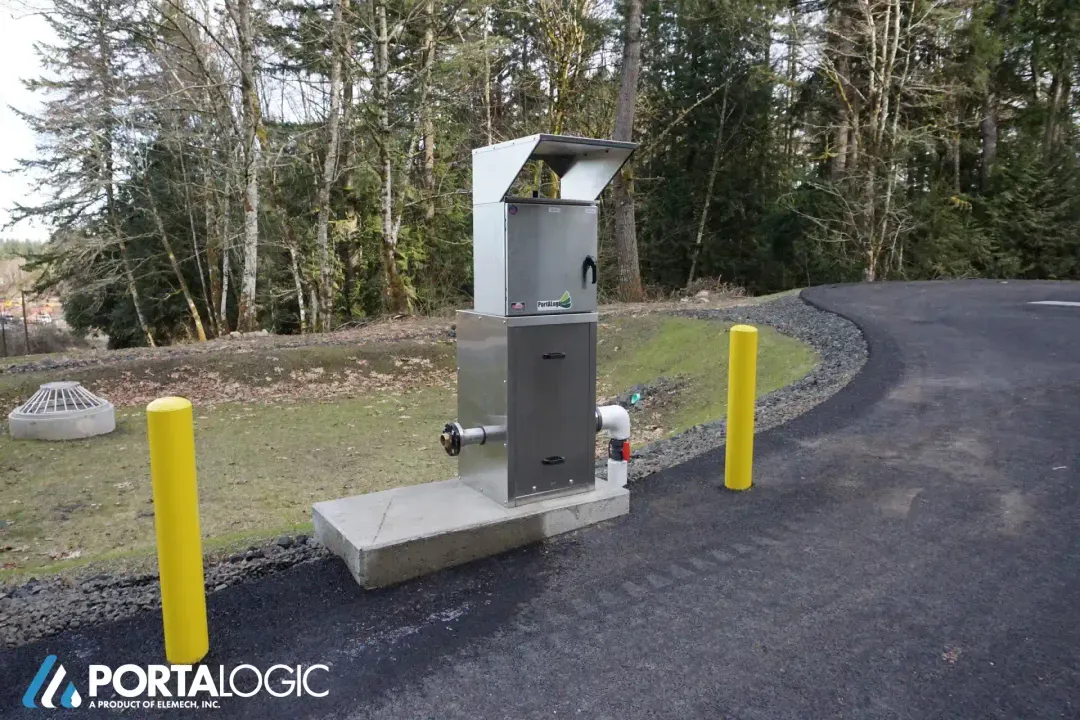

Bulk Water Dispensing Station (Enclosed Meter and Valve)
The FS-22 is a complete standalone bulk water dispensing station with enclosed meter and valve for 1″–4″ piping. Ideal for the sale of non-potable water or where backflow prevention is enclosed separately.
.webp)

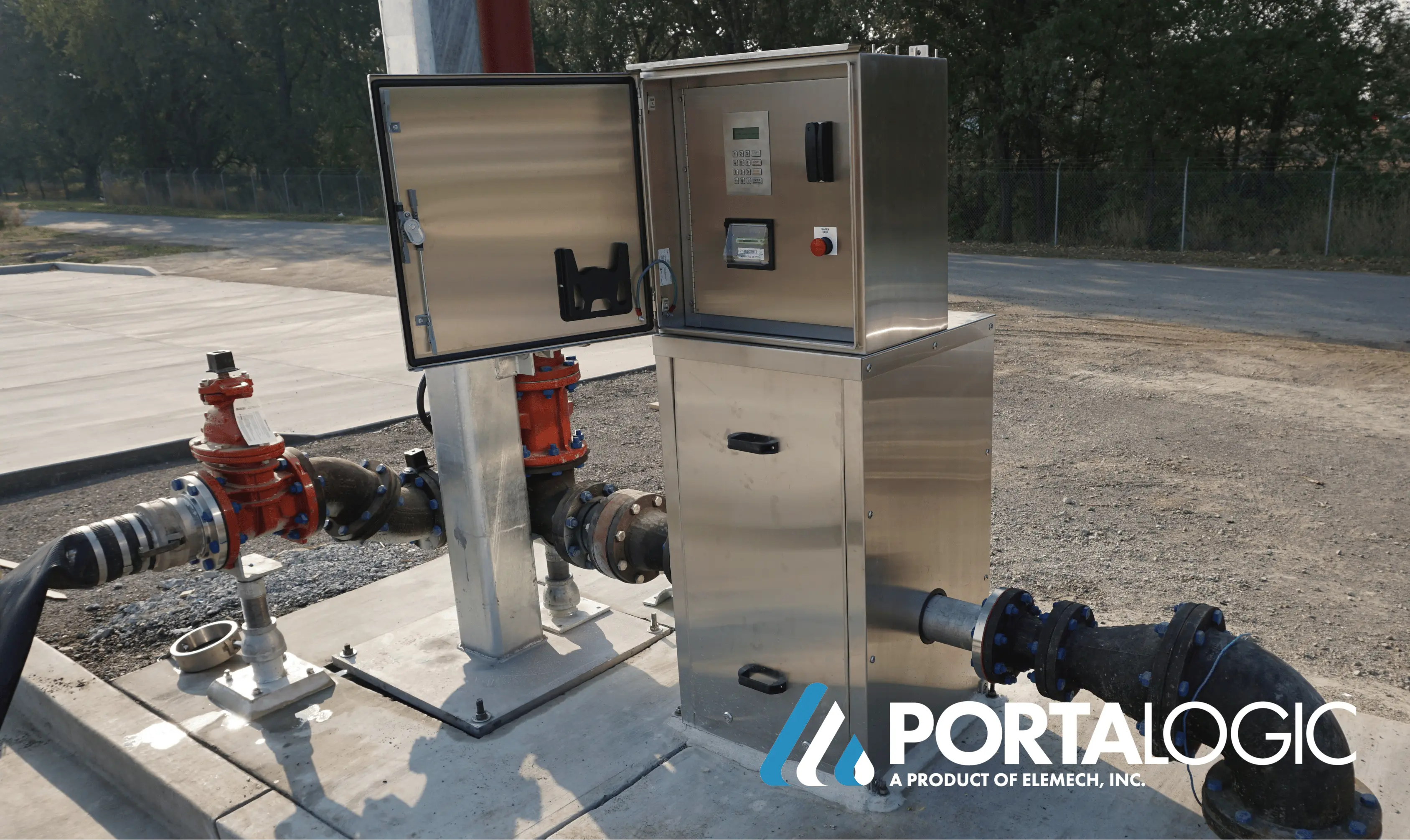

Some sites want the convenience of a completely configured station but do not have a requirement for enclosed backflow prevention. The FS-22 is a turnkey bulk water dispensing station with a small footprint, an enclosed meter and valve for 1″ to 4″ piping. It carries the full access, metering, and billing platform in a standalone NEMA 4X stainless enclosure.
Standard Features
- Keypad or touch-screen access display
- Secure PIN access control
- Water metering on every transaction
- NEMA 4X, 304 stainless steel enclosure
- Latchable swing-out door for weather protection
- Integrated management and payment portal
- Configurable pricing by user type or volume
- Standalone, turnkey station
- Enclosed meter and valve for 1″–4″ piping
Optional Features
- Point of sale payment methods: Credit card reader, bill acceptor, coin acceptor
- Additional access methods: RFID card, key fobs, and others
- Additional enclosure styles - NEMA 4X 316SS
- Additional selector switches for multiple fill points
- Heavy duty kiosk-style printer, illuminated chute
- Cloud hosted software package
- Custom logic and programming
- Stainless Steel sun shroud for added protection
- Multiple outlets for dual lower and upper filling
FS-22 Model use cases
Common Applications:
- Facilities selling non-potable or reclaimed water
- Facilities with backflow prevention installed earlier in the water line
- Facilities utilizing an airgap with overhead filling arm
- Facilities with seasonal or warm weather operation
- Sites looking for the convenience of a fully configured station rather than a retrofit to existing equipment
FS-22 Specifications
Specifications:
Type:
Turnkey standalone station (no backflow preventer)
Dimensions:
24″ L × 24″ W × 68″ H
Enclosure:
NEMA 4X, 304 stainless steel
Hauler Access:
Multiple access methods including keypad entry, swipe cards, key fobs, credit/debit card, and others as required.
Piping:
Enclosed meter and valve, 1"-4"
Flow Rate:
100gpm-400gpm
Power:
240/120 VAC, 20 AMP
Interface:
Control and monitor valves and meters, gates, sensors, and more
Temperature:
Operating temperature range -40°F to 122°F (-40°C to 50°C)
Software:
Station interfaces with Portalogic management software for record keeping, billing, monitoring, and reporting
Certifications:
UL and CSA Listed, AIS and BABA Compliant
