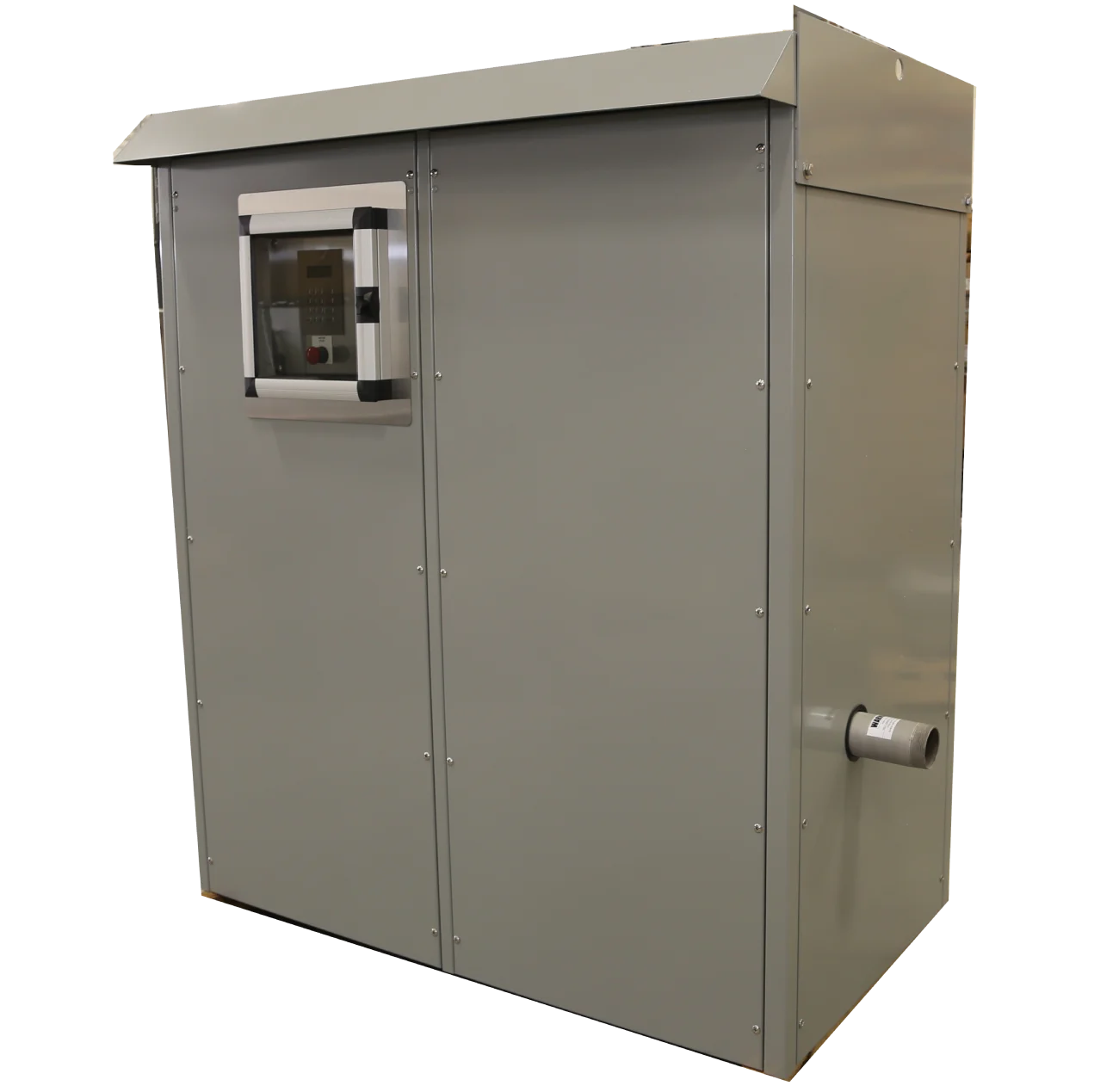

FS-63
3″ Turnkey Bulk Water Dispensing Station with Backflow Preventer
Best for: cold-climate potable water sites that need a complete 3″ station.
The FS-63 combines the full FS-20 platform with an enclosed, temperature-controlled meter, valve, and backflow preventer, so potable service continues safely through winter.
The FS-63 combines the full FS-20 platform with an enclosed, temperature-controlled meter, valve, and backflow preventer, so potable service continues safely through winter.
Higher-volume haulers need faster fills than a 2″ station delivers. The FS-63 is a turnkey 3″ bulk water dispensing station built for harsher climates. It provides temperature-controlled metering and integrated backflow prevention at 3″ flow rates.
Standard Features
- Keypad or touch-screen access display
- Secure PIN access control
- Lockable, painted galvanized steel enclosure
- Temperature-controlled meter, valve, and backflow preventer
- Integrated management and payment portal
- Configurable pricing by user type or volume
- Standalone, turnkey station
- Enclosed meter and valve for 3/4" (hosebib)–3″ piping
Optional Features
- Point of sale payment methods: Credit card reader, bill acceptor, coin acceptor
- Additional access methods: RFID card, key fobs, and others
- Multiple-outlet configuration
- Heavy duty kiosk-style printer, illuminated chute
- Cloud hosted software package
- Custom logic and programming
- Solar / off-grid power package
FS-63 Model use cases
Common Applications:
- Higher-flow municipal and utility fill programs
- Cold-climate potable water dispensing at 3″ rates
- Sites that require code-compliant backflow prevention
- Multi-truck operations that outgrow a 2″ station
- Rural and unserviced-area potable water access points
- Sites looking for the convenience of a fully configured station rather than a retrofit to existing equipment
.webp)
FS-63 Specifications
Specifications:
Type:
Turnkey standalone station with backflow preventer
Dimensions:
66″ L × 36″ W × 75″ H
Enclosure:
Lockable, painted galvanized steel
Hauler Access:
Multiple access methods including keypad entry, swipe cards, key fobs, credit/debit card, and others as required.
Piping:
Enclosed meter and valve, 3/4"-3"; Muliple outlet option
Flow Rate:
100gpm-300gpm
Power:
240/120 VAC, 20 AMP
Interface:
Control and monitor valves and meters, gates, sensors, and more
Temperature:
Operating temperature range -40°F to 122°F (-40°C to 50°C)
Software:
Station interfaces with Portalogic management software for record keeping, billing, monitoring, and reporting
Certifications:
UL and CSA Listed, AIS and BABA Compliant
Need more information?
Contact our team today.
Ask us questions, no matter what project stage. From early budgetary planning to full station design recommendations, Contact our team today so that we can assist you in your journey.
